Analysis overview

The Analysis window is used to switch between analysis types and can be accessed through File › Open Analysis Window.

The available analyses are determined by the recording type. Curve Fitting and Event Detection are supported for both voltage-clamp and current-clamp recordings. Action Potential Counting, Action Potential Kinetics, and Input Resistance are available only for current-clamp recordings.

For maximum flexibility, each analysis type is independent and can be run concurrently. This means it is possible to switch from one analysis type to another mid-analysis without overwriting results. The relevant plots and results tables will be updated on analysis change.

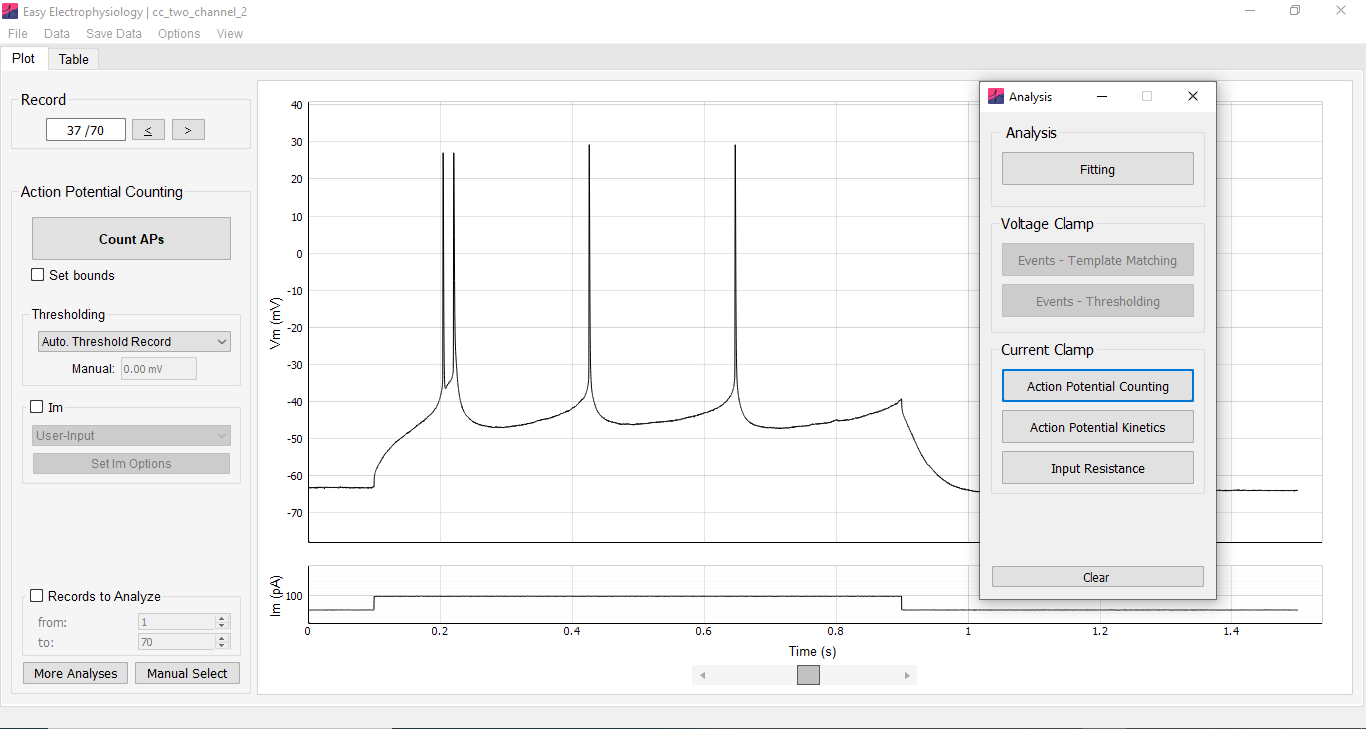

Switching analysis. The analysis type can be switched in the Analysis window, opened from File › Open Analysis Window. Switching analysis displays the relevant options in the panel on the left.
